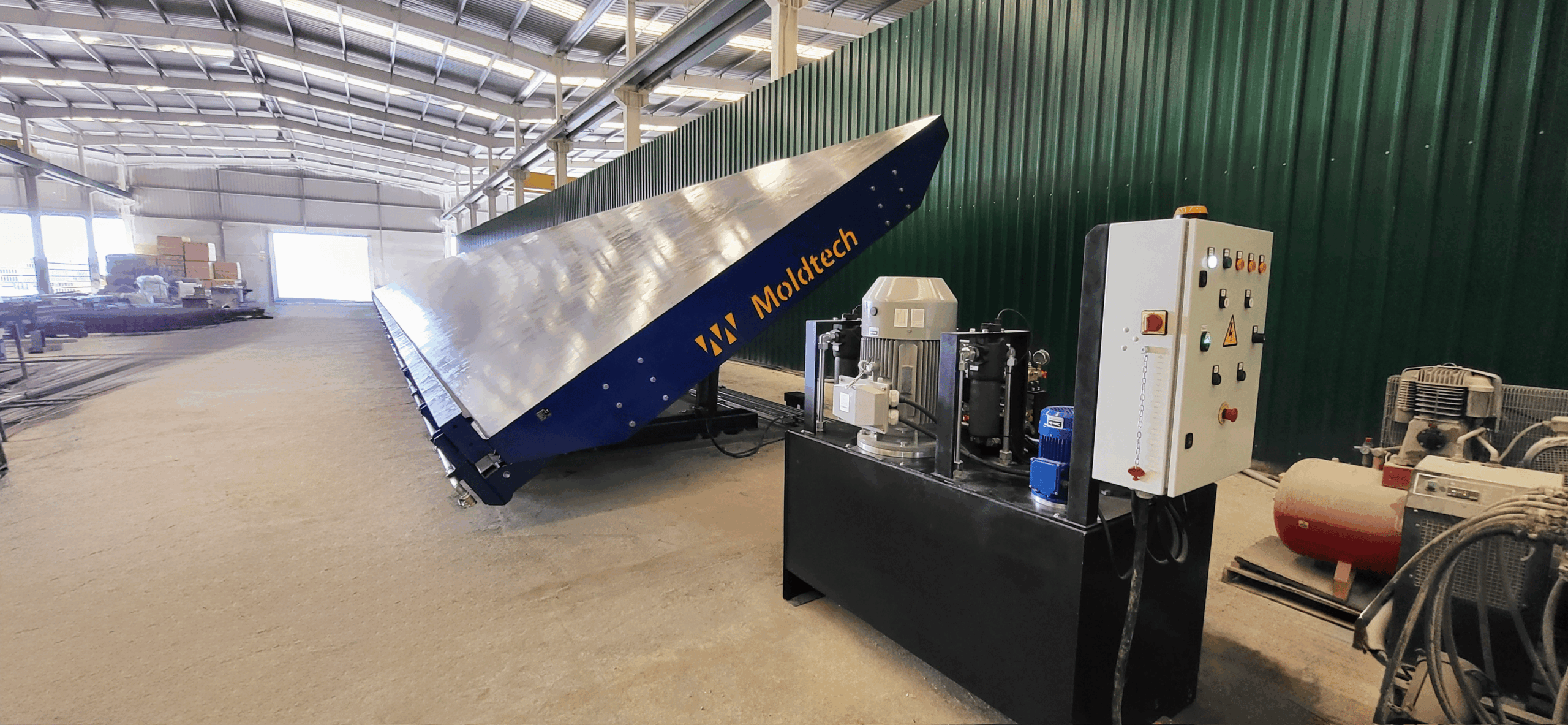

Moldtech has supplied a tilting table in Spain, designed for the production of large-format precast concrete panels.
The installation consists of 4 modules measuring 12 x 4.2 m, which, when assembled, form a production line of 50 meters in length and 4.2 meters in width.

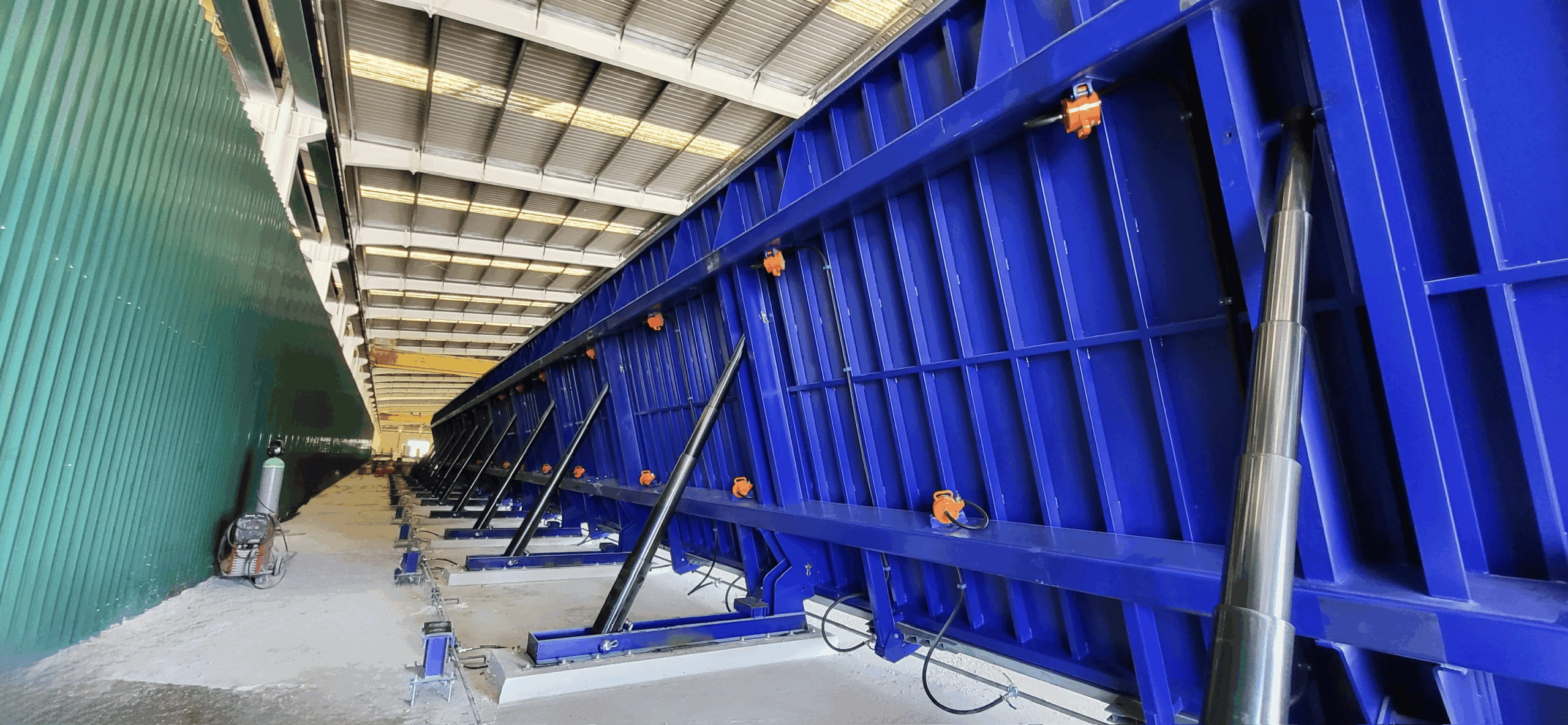

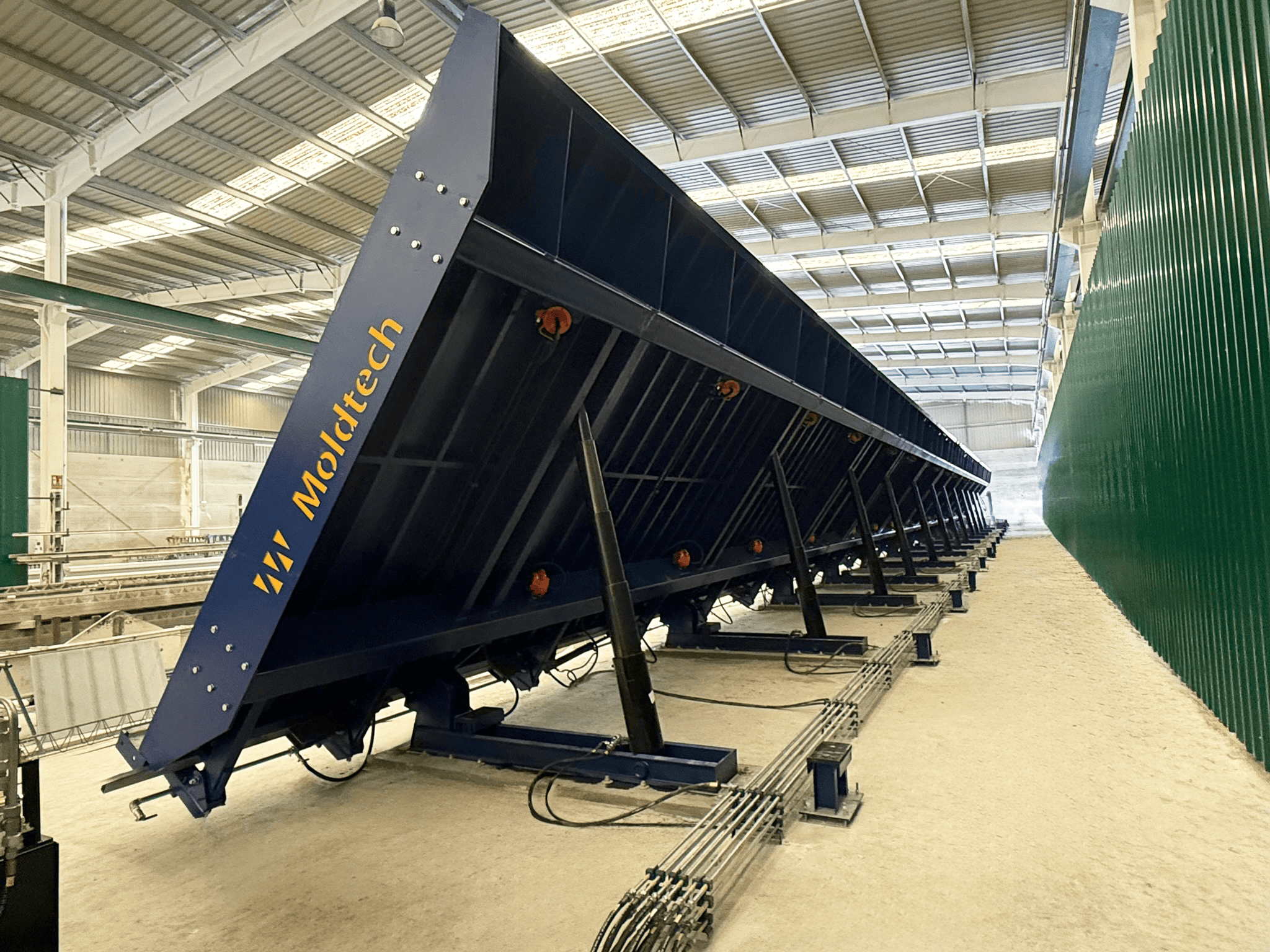

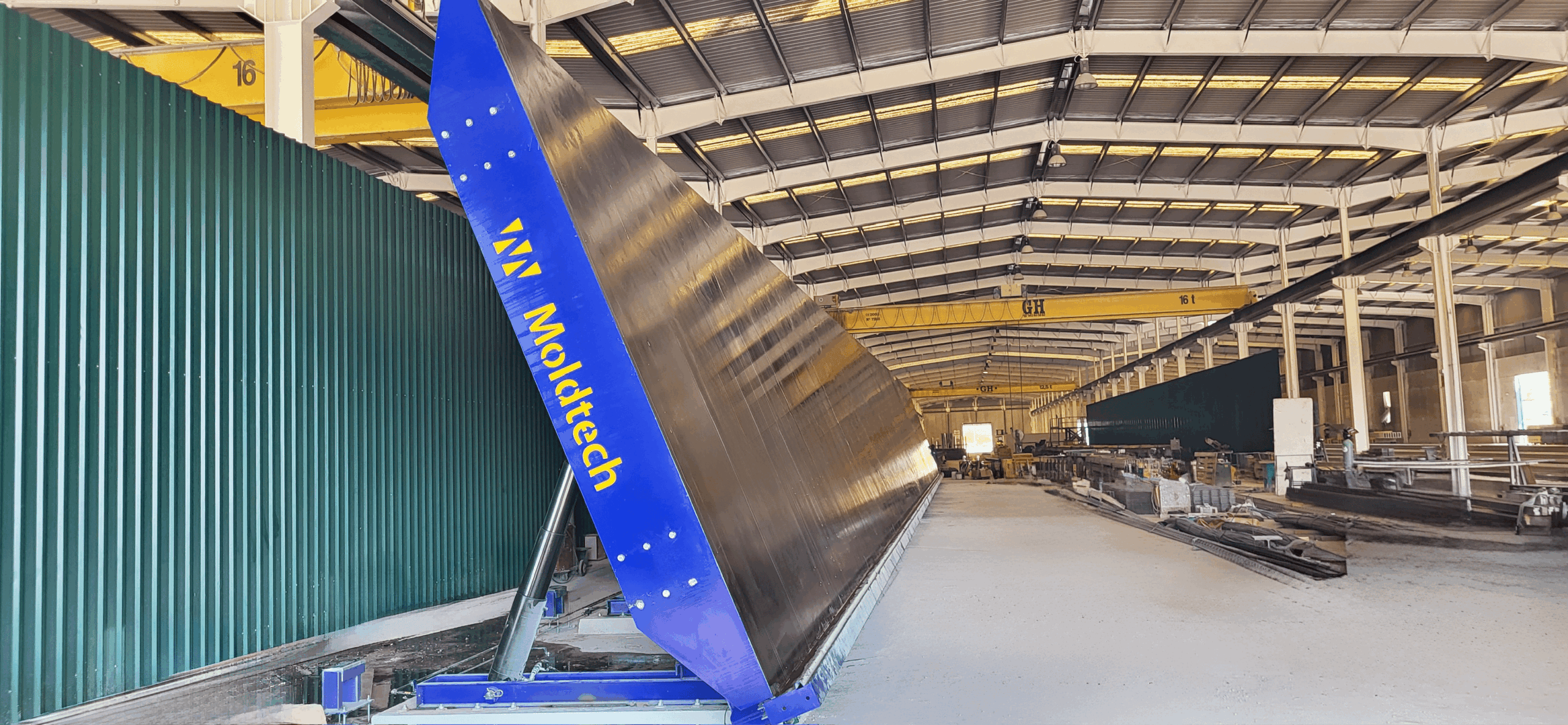

Each module is composed of a fixed frame with supports anchored to the foundation and a tilting platform that allows a maximum inclination of 74°, ensuring safe and efficient demoulding.

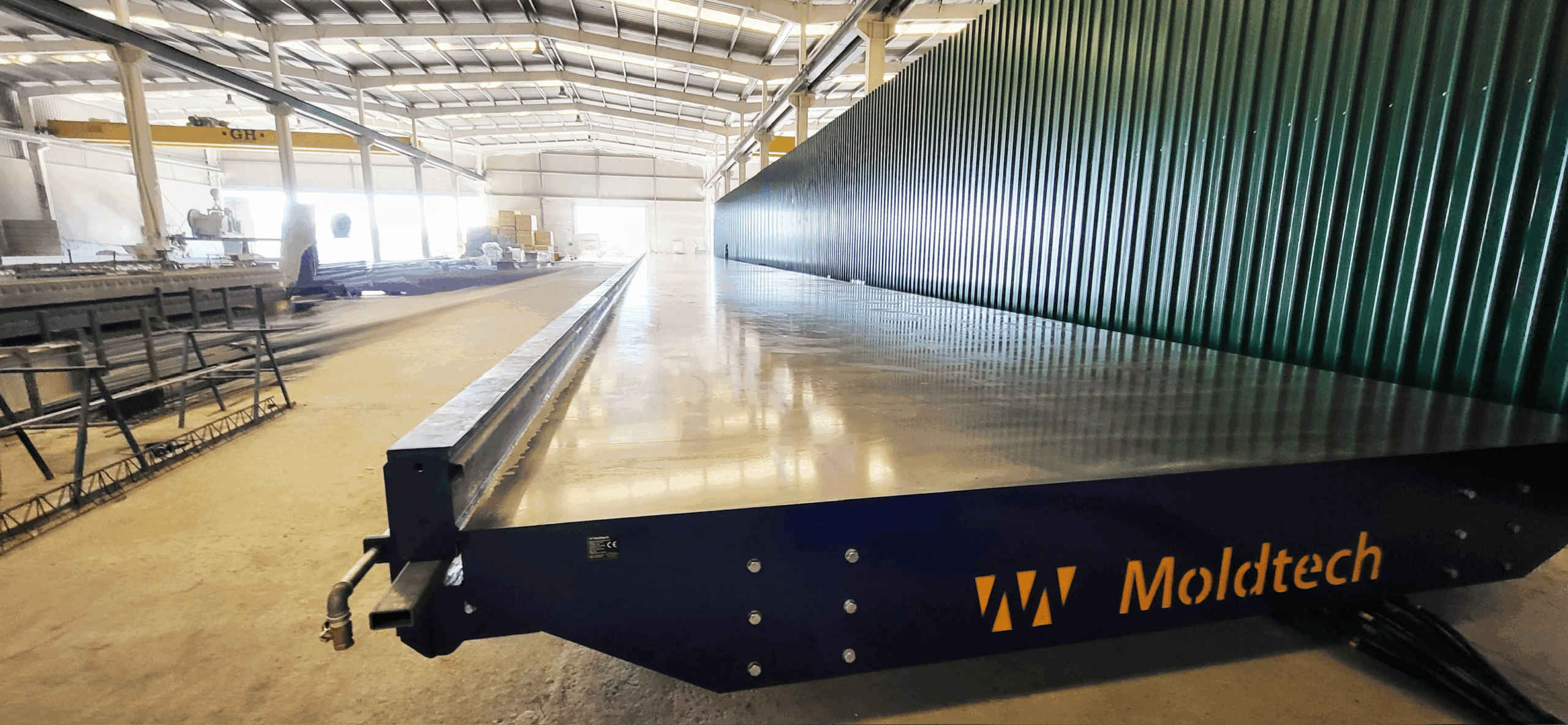

In addition, the modules include a lower longitudinal side rail adjustable in height, enabling the production of straight panels with variable thicknesses ranging from 120 mm to 240 mm.
The table is equipped with a pneumatic vibration system, ensuring an excellent surface finish for each panel produced.
With this project, Moldtech strengthens its commitment to providing advanced technical solutions tailored to the needs of its clients in the precast concrete sector.
