Moulds for 3D Bathroom units – PBU

Designed for the modular construction of 3D bathrooms.

Facebook
Twitter
LinkedIn
WhatsApp
Email

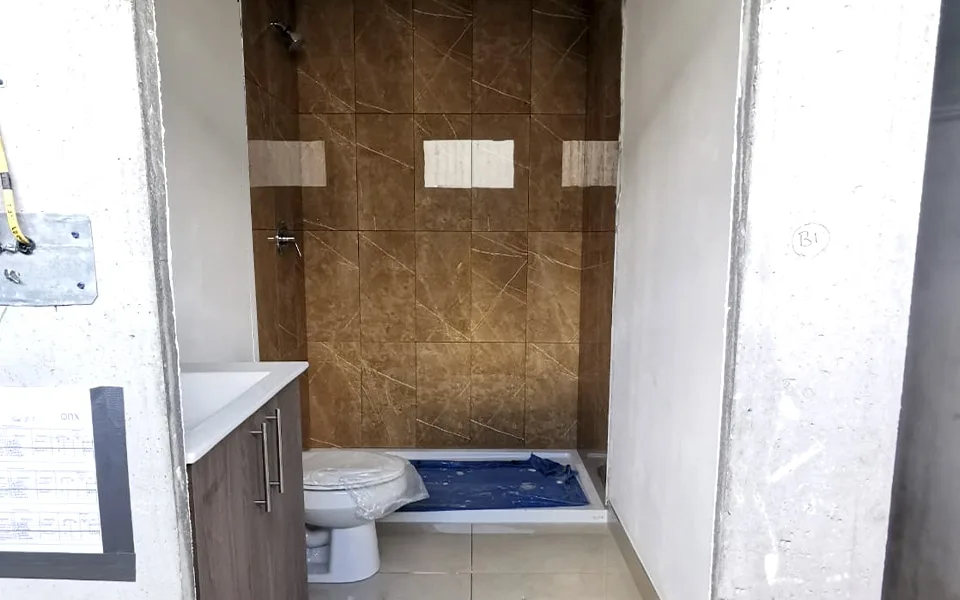

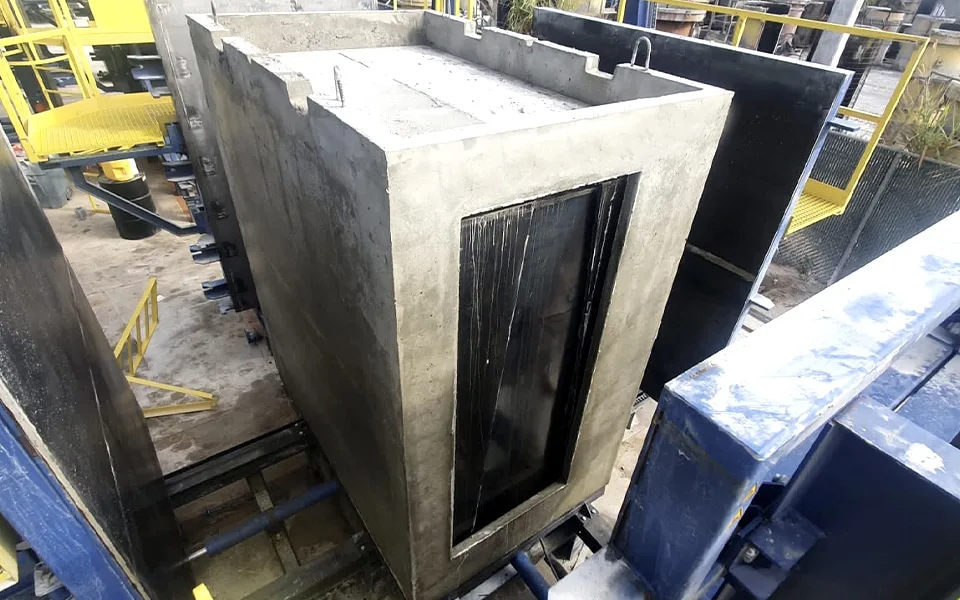

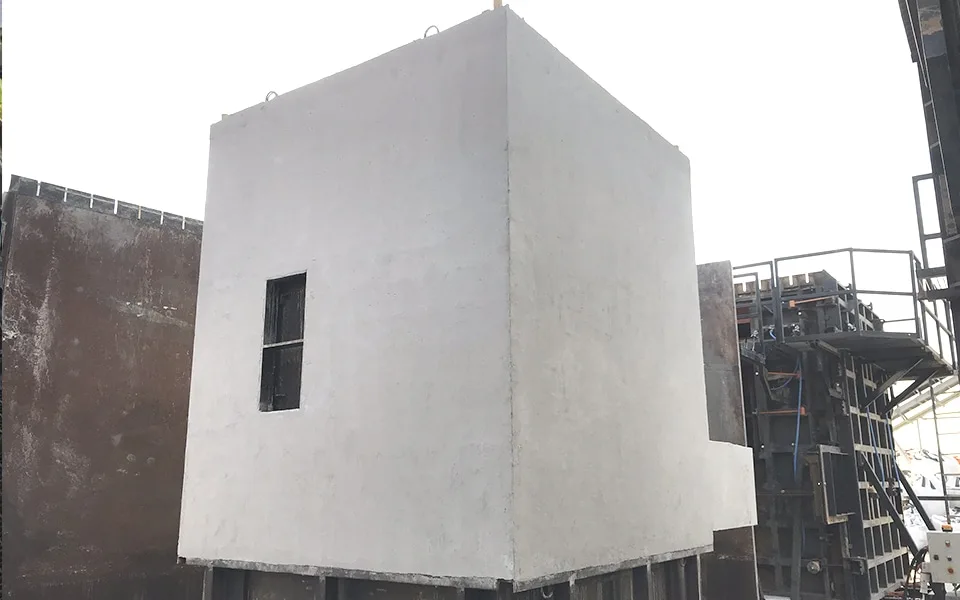

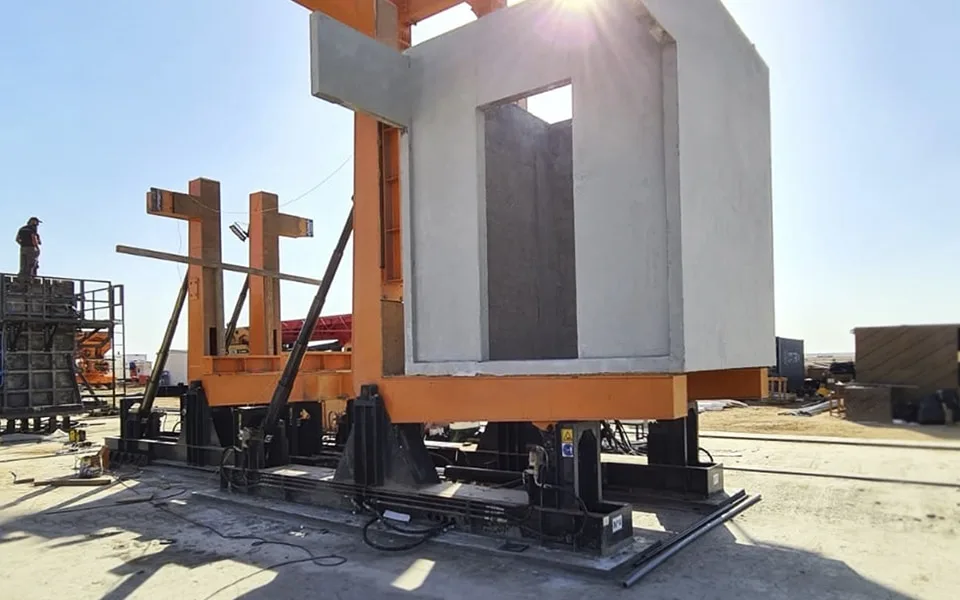

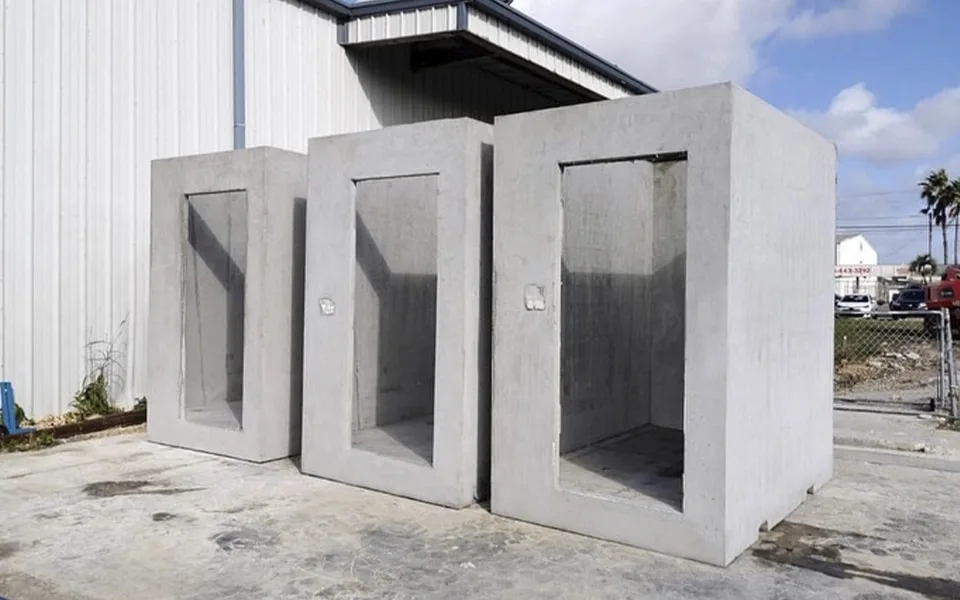

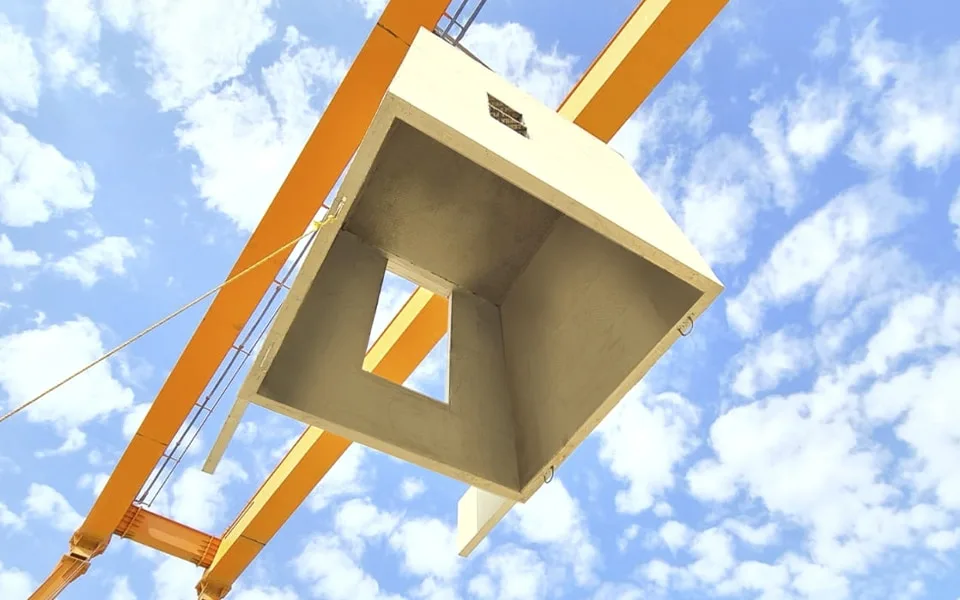

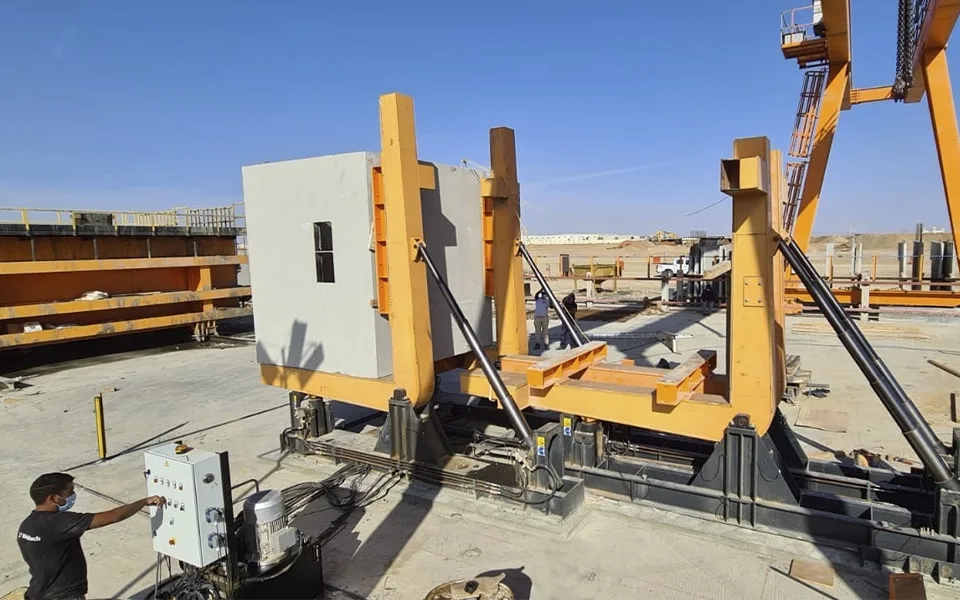

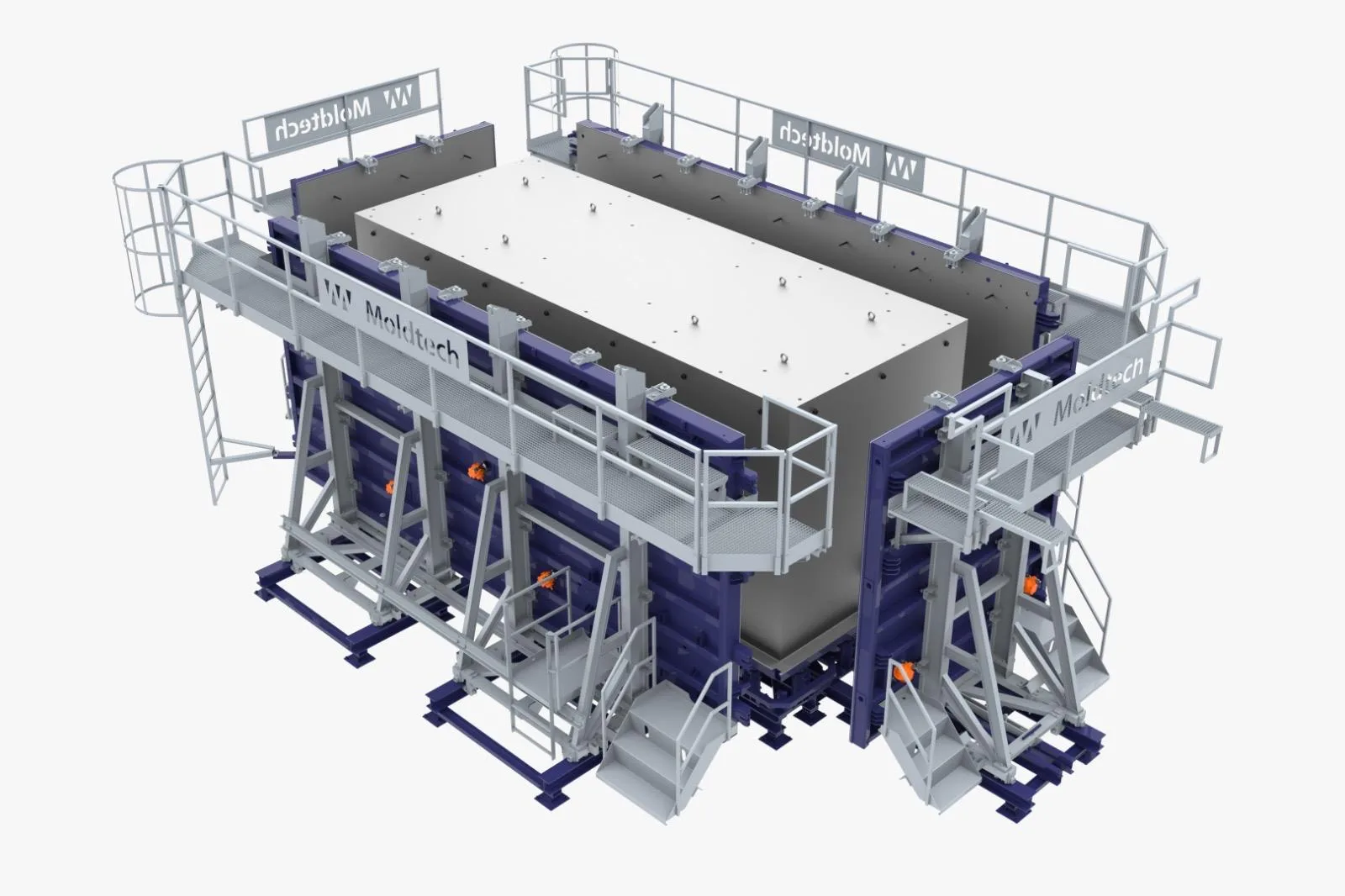

This mold system allows the manufacture of 3D prefabricated concrete bathroom units in one piece including floor and walls. PBUs are cast in an inverted position to cast monolithic elements with a good finish and easy concreting. Once cured, the units are turned 180º to be finished and transported to the construction site. The concrete pieces will have a floor slab and walls that will allow all the necessary sanitary installations to be embedded in the concrete, as well as the pre-installation of wiring and electrical accessories.

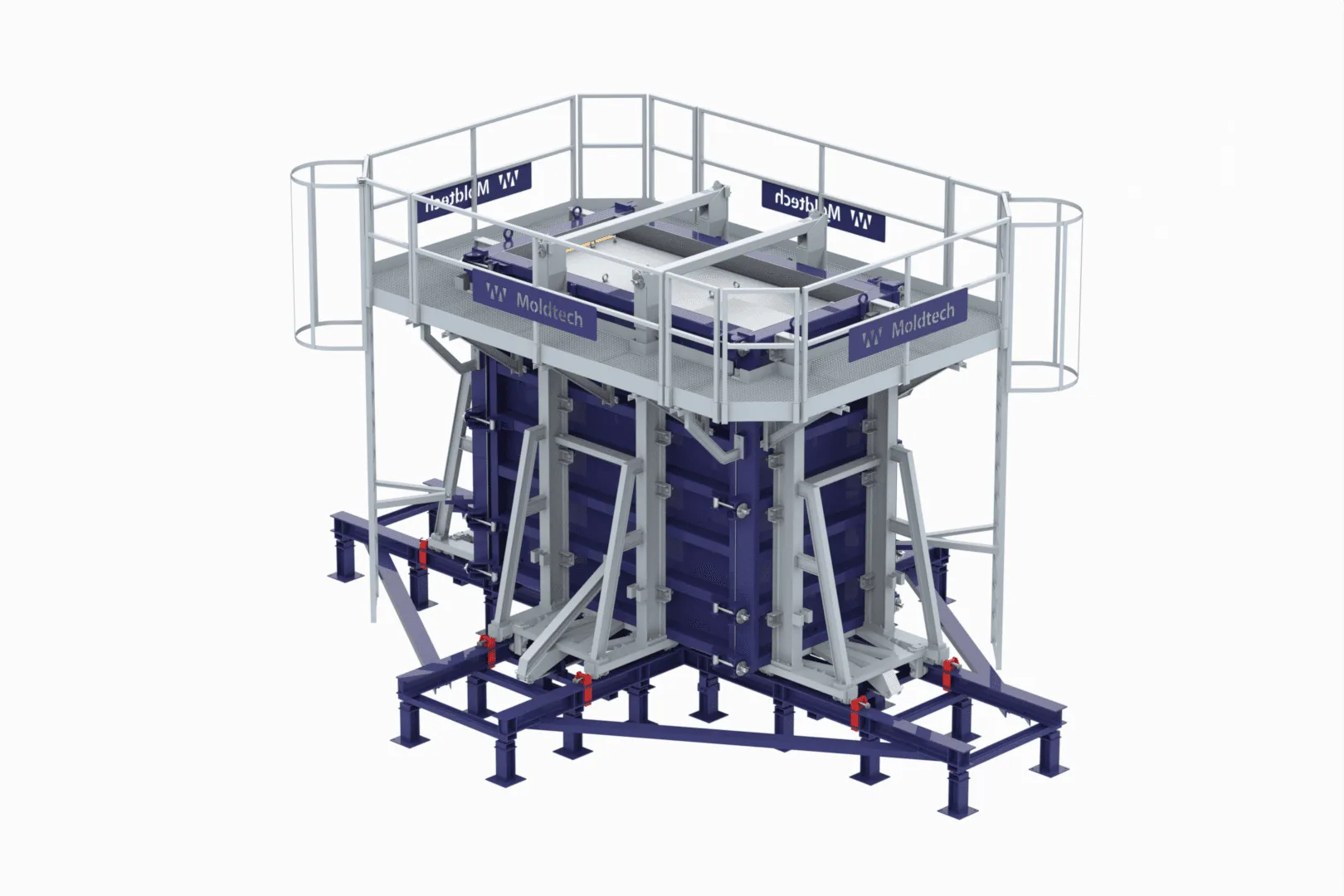

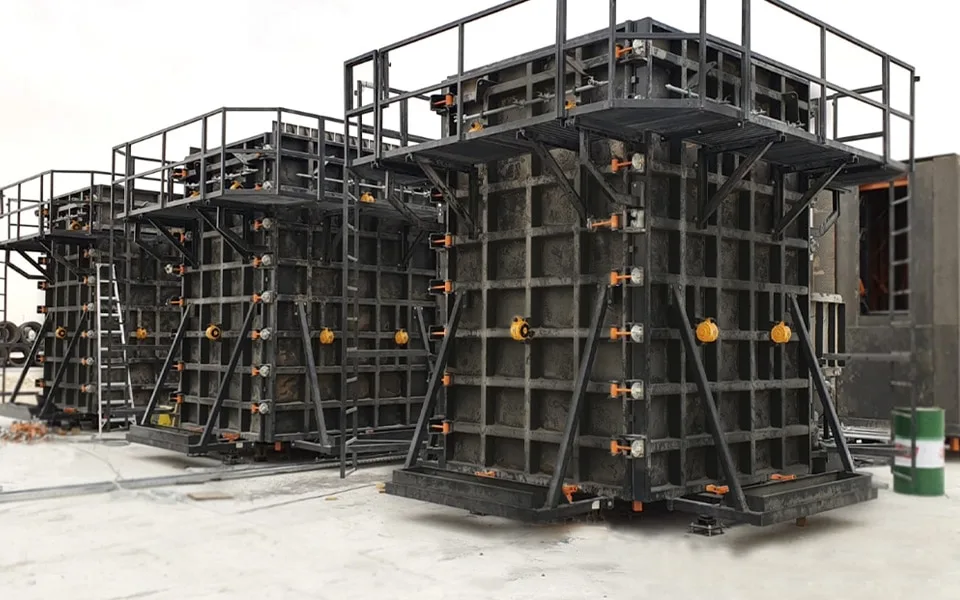

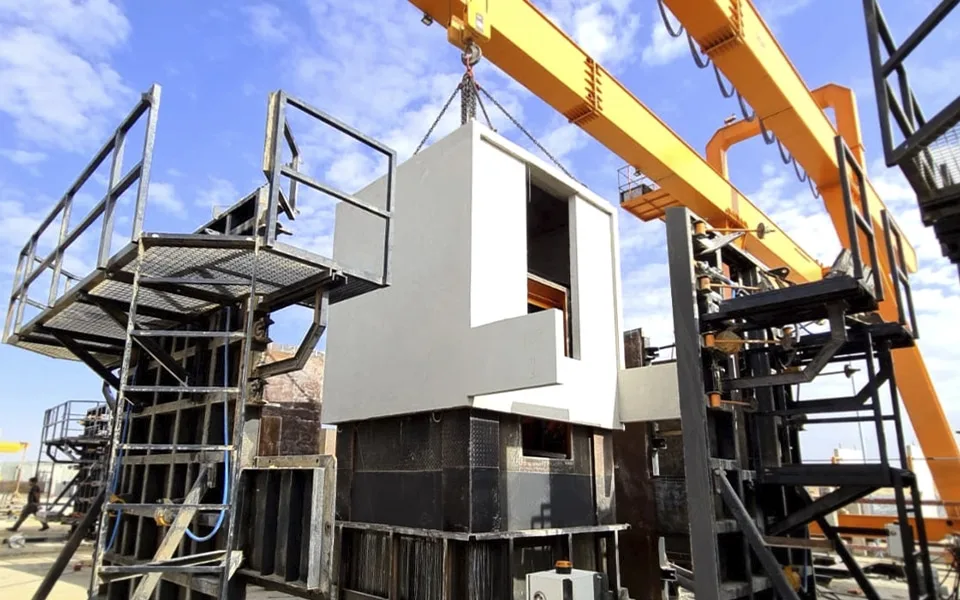

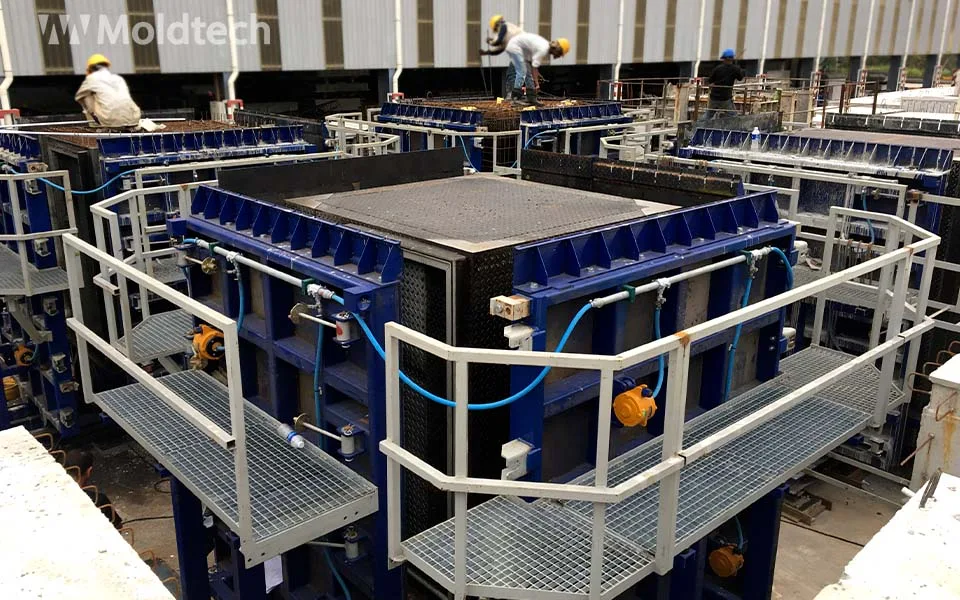

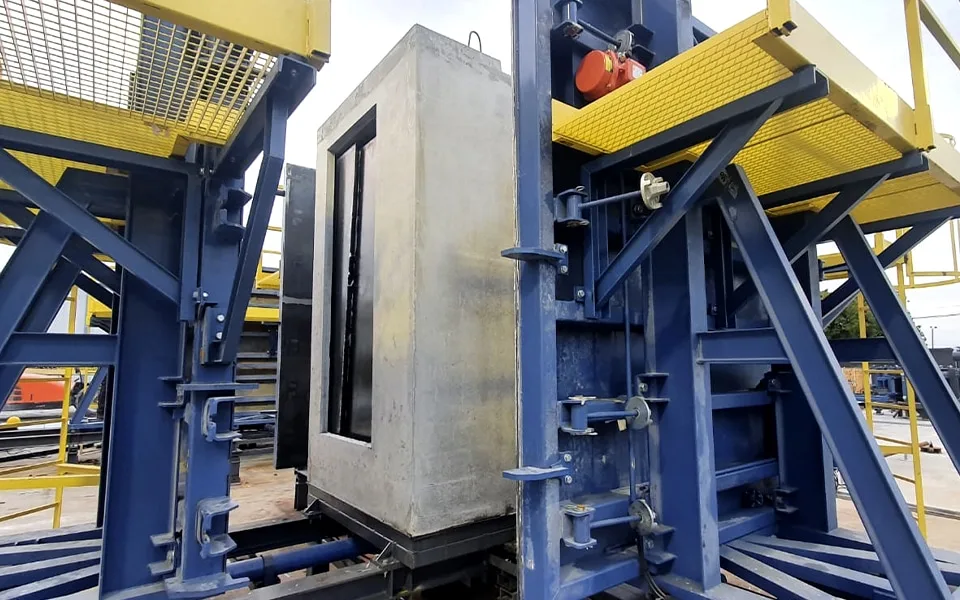

The mold will be designed according to the specific dimensions and requirements provided by the client. The mold incorporates a hydraulic system to help with the initial demoulding of the prefabricated part. This system is based on a set of hydraulic cylinders at the base of the mold to push the concrete piece up. The outer sides are removable using a Dywidag bar and nut system, which allows the outer mold to be easily opened and removed by crane in a very short time. The inner mold is manufactured with minimal conicities that allow demoulding.

Moulds for 3D Bathroom units – PBU
Moulds for 3D Bathroom units – PBU
Moulds for 3D Bathroom units – PBU
Moulds for 3D Bathroom units – PBU
Moulds for 3D Bathroom units – PBU
Moulds for 3D Bathroom units – PBU
Moulds for 3D Bathroom units – PBU
Moulds for 3D Bathroom units – PBU
Moulds for 3D Bathroom units – PBU
Moulds for 3D Bathroom units – PBU
Moulds for 3D Bathroom units – PBU
Moulds for 3D Bathroom units – PBU
Moulds for 3D Bathroom units – PBU
Moulds for 3D Bathroom units – PBU
Contact an expert from our team now

Recommended Products

Moulds for 3D modular housing -PPVC

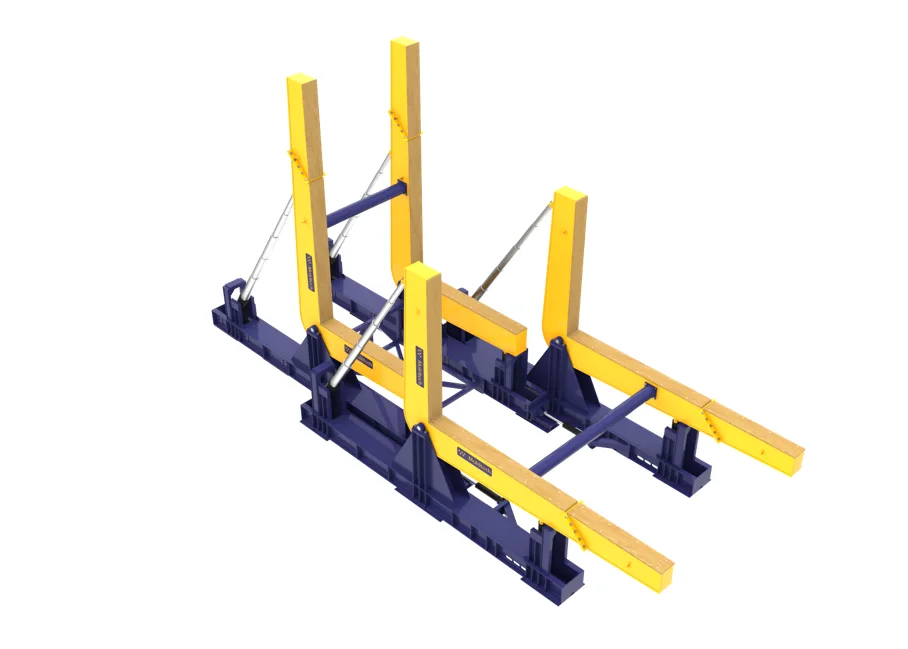

Turner 180º for 3D elements
