MOLDTECH SUPPLIES A 40-METRE HYDRAULIC COLUMN MOULD IN PORTUGAL

Facebook
Twitter
LinkedIn
WhatsApp
Email

Moldtech has successfully completed the supply and installation of a simple mould for columns with a useful length of 40 meters, specifically designed for the production of columns used in industrial and logistics structures/buildings.

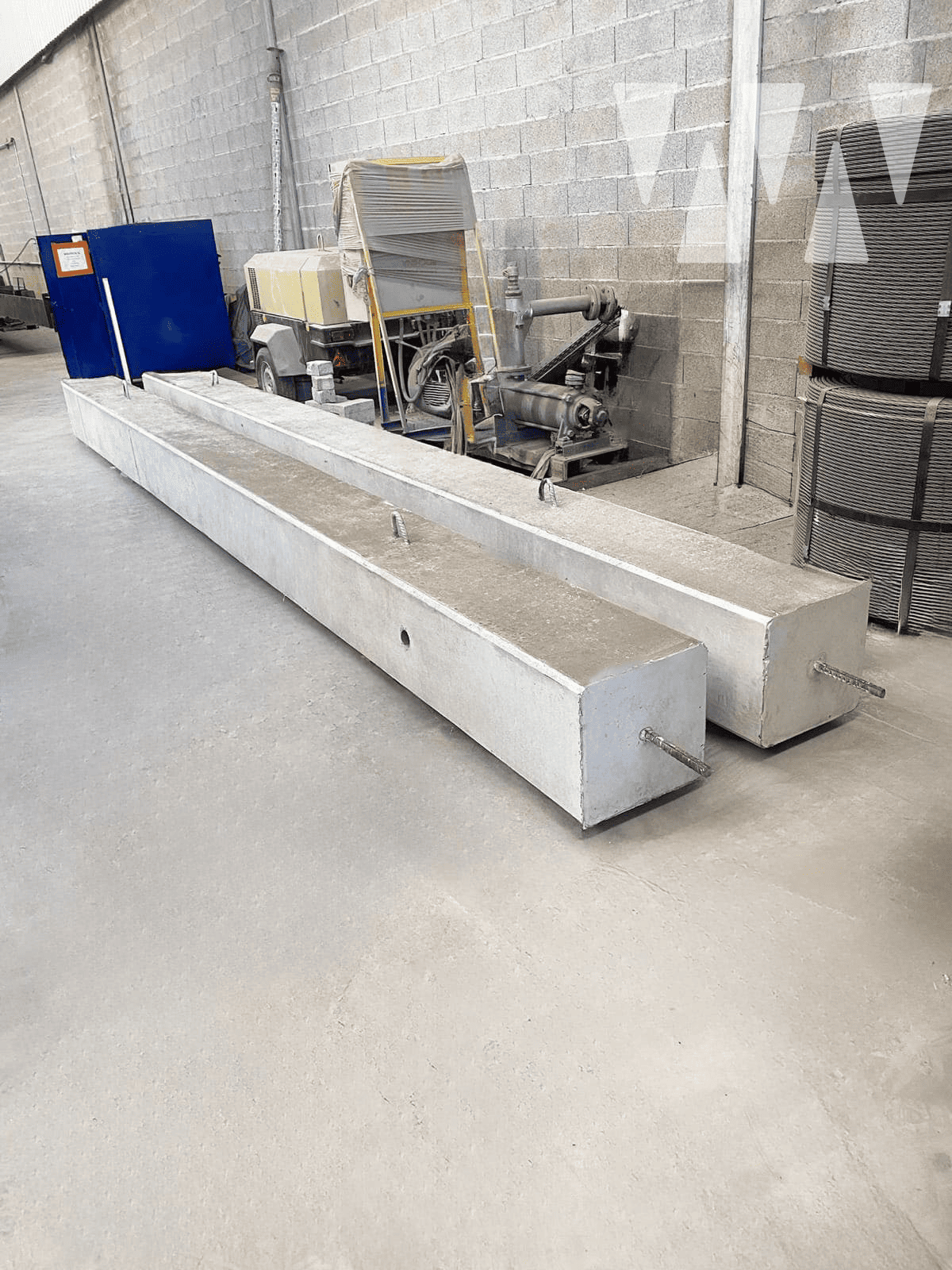

This equipment allows the client to cast columns up to 40 meters length, with different bottom widths, from 400 mm to 600 mm, and a maximum height of 600 mm, reaching maximum dimensions of 60 x 80 cm.

Versatility in design

The mould incorporates an adjustable system which allows the installation of corbels on the four sides of the mould for columns, providing great flexibility to meet the different structural requirements for each project. In addition, several sections can be assembled in series to increase production capacity.

Integrated hydraulic technology

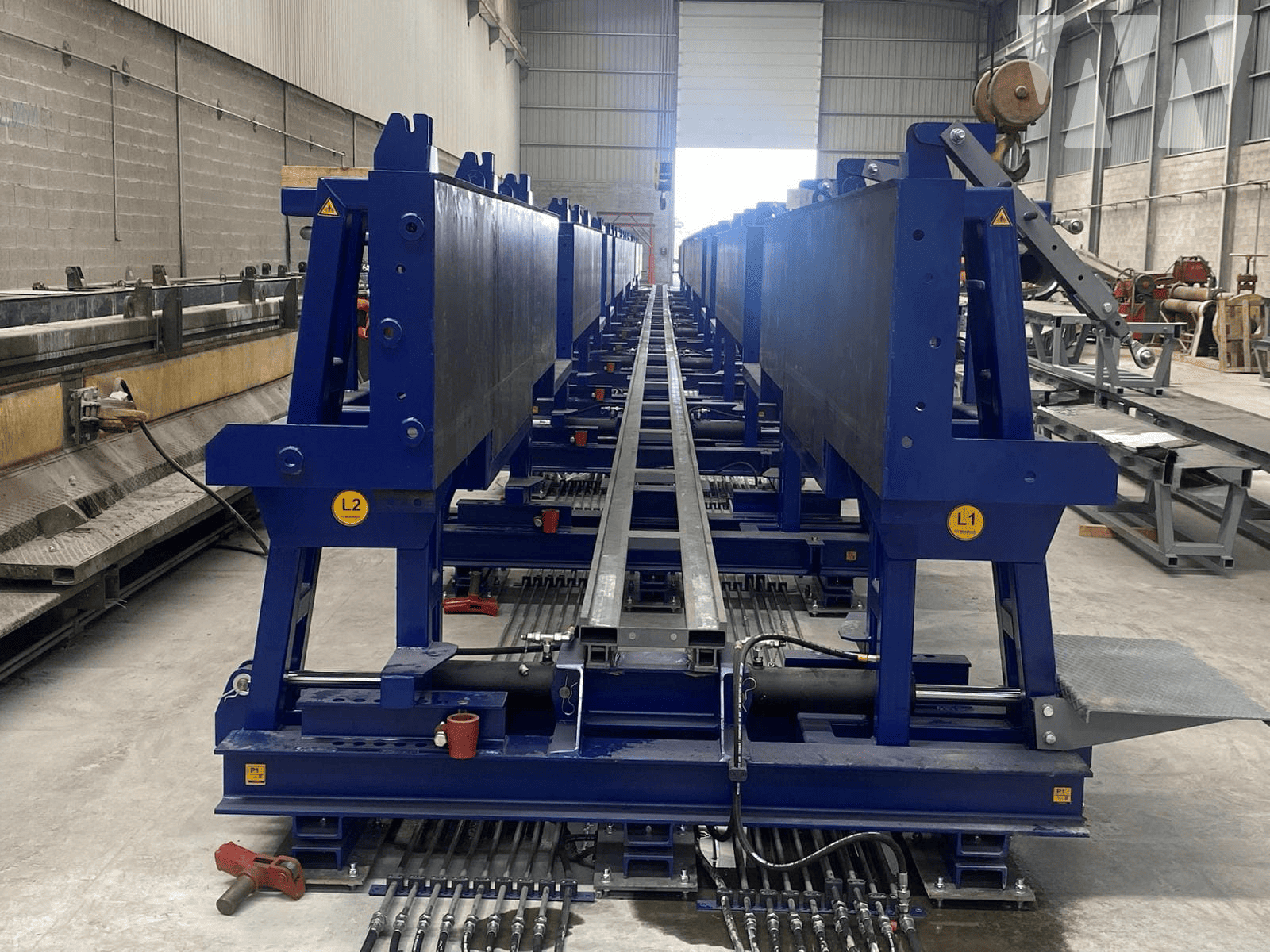

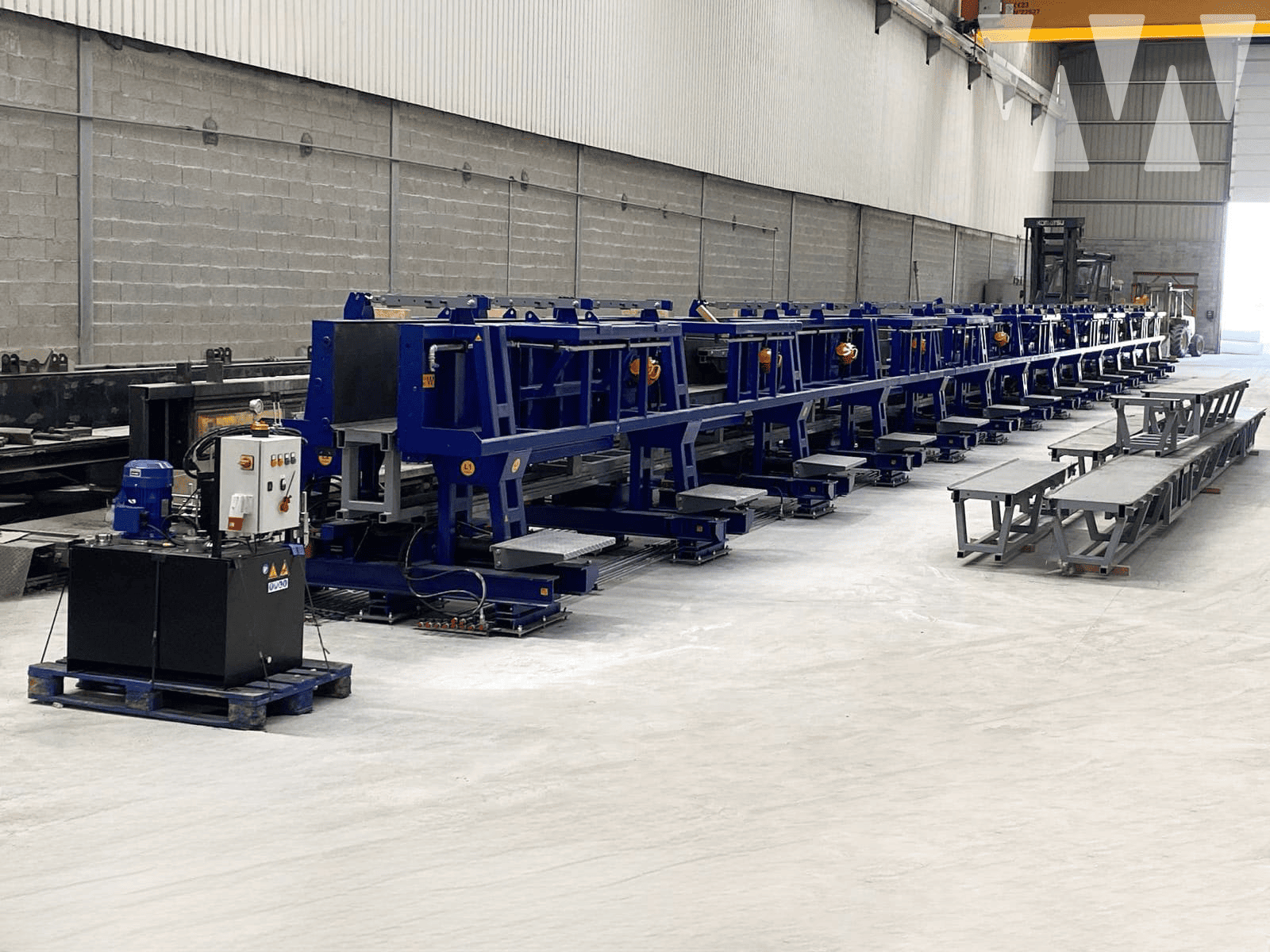

The machine is equipped with its own hydraulic power unit, which automates the main operations:

  • Opening and closing of the side panels.
  • Raising and lowering of the bottom baseplates.

This hydraulic system with synchronized cylinders facilitates the removal of the precast element, reduces the operation times and enhances safety during the moulding process, ensuring accurate and continuous production.

Advanced production options

  • Replacement or height adjustment of the base to obtain different cross-sections.
  • Possibility of integrating electric or pneumatic vibration systems to improve the surface finish.
  • Incorporation of heating systems using finned tubes for the circulation of hot water or steam, accelerating the curing process.

A step further in international collaboration

The company, based in Felgueiras (Portugal), has more than three decades of experience in the production of precast concrete products. Its expertise enables it to serve both the Portuguese market and international markets, delivering technical solutions for building and infrastructure projects.

With this project, Moldtech strengthens its commitment to tailor-made engineering and technology applied to precast concrete, adapting to the specific requirements of each precast factory and consolidating its presence in the Portuguese market.

👉 For more information on how Moldtech can help optimise your precast plant’s production, please contact our specialised team.
