Mould for Delta beams
Facebook
Twitter
LinkedIn
WhatsApp
Email

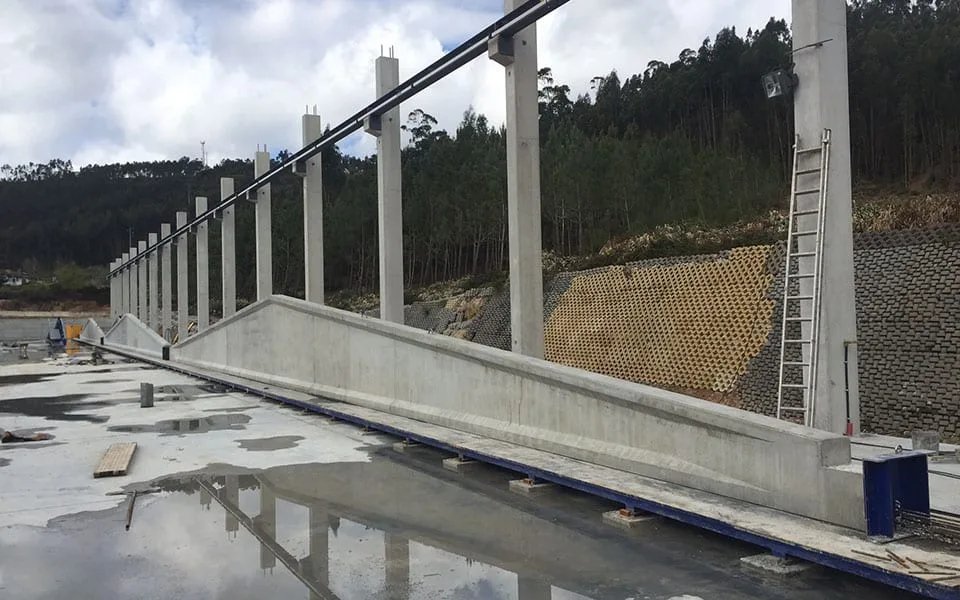

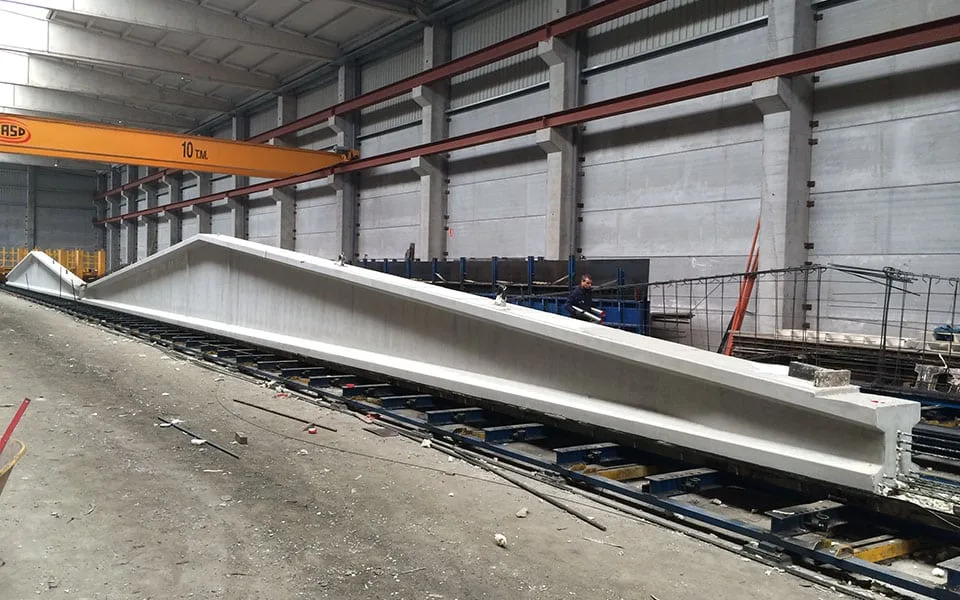

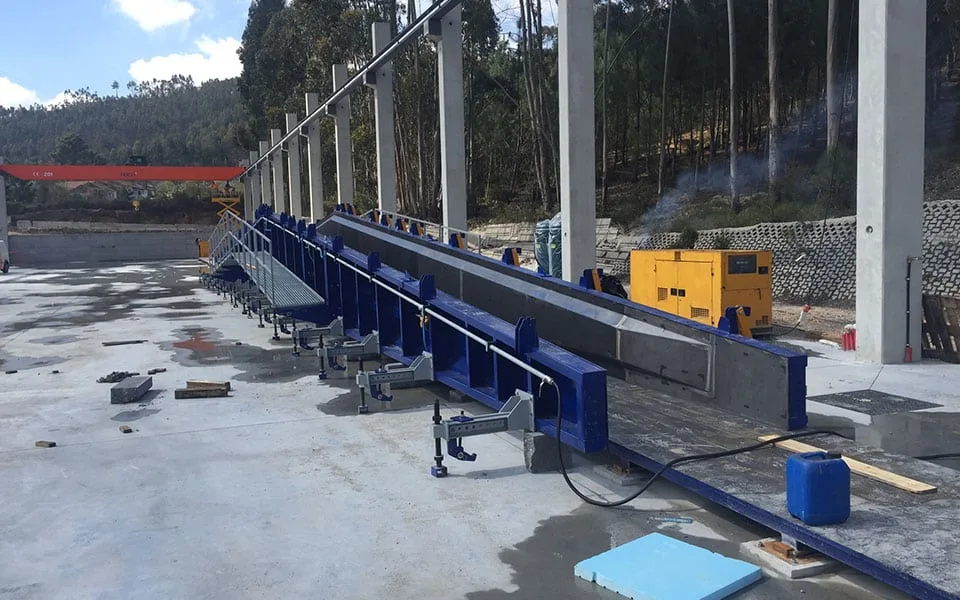

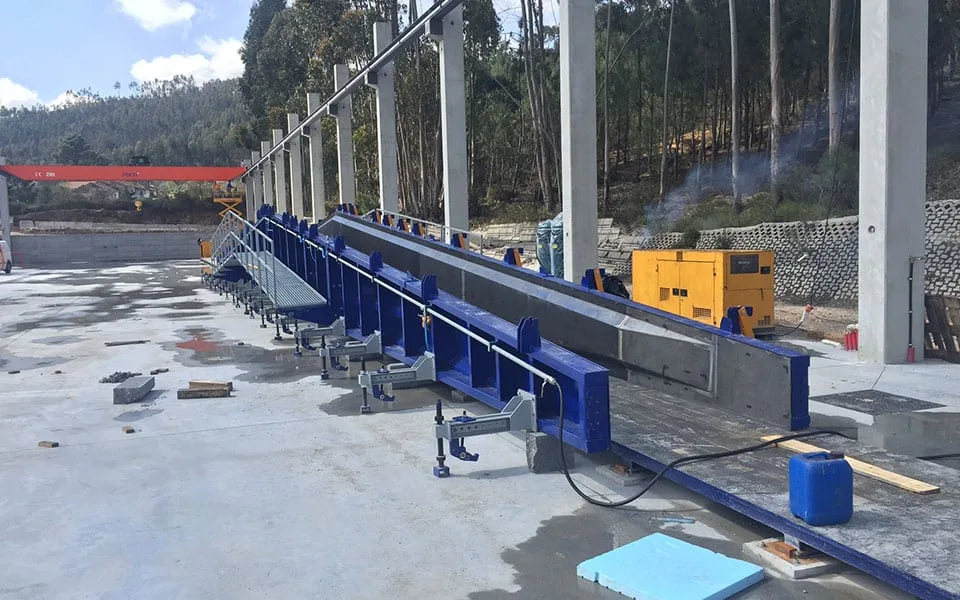

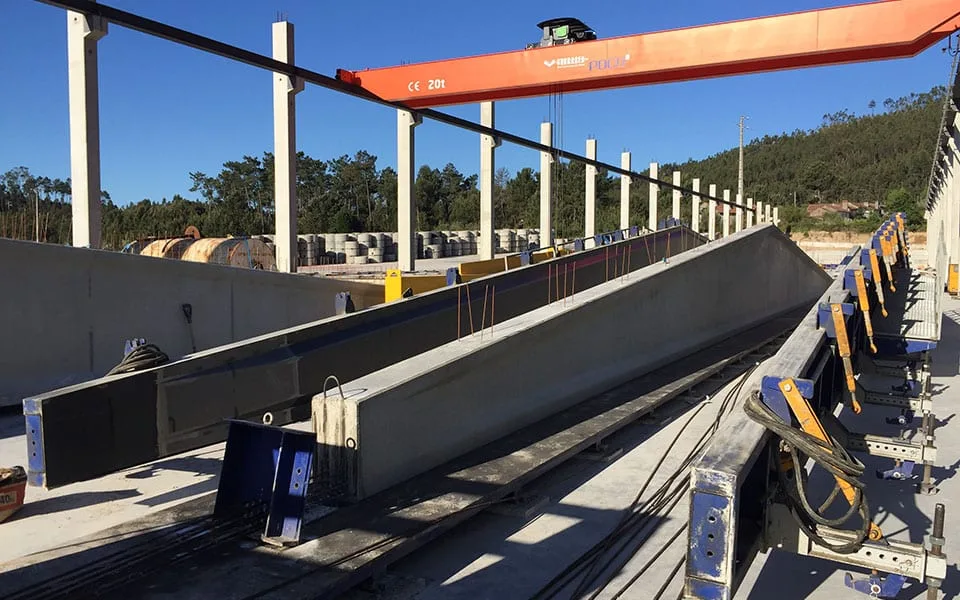

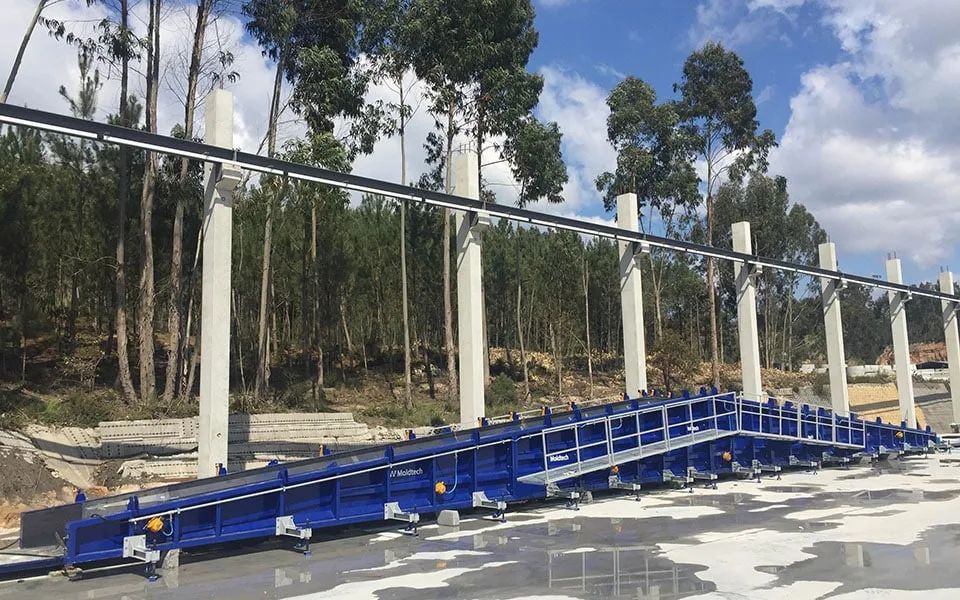

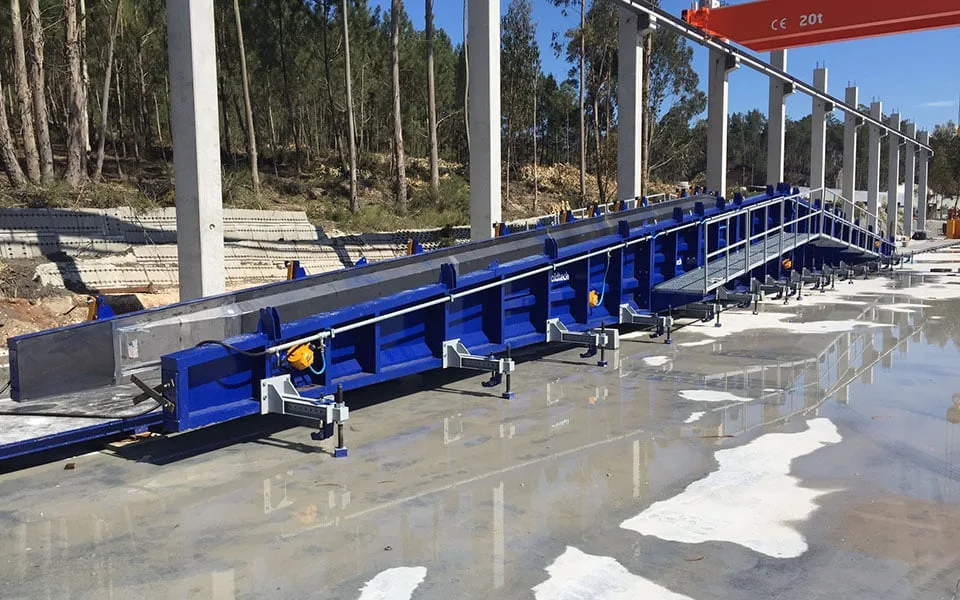

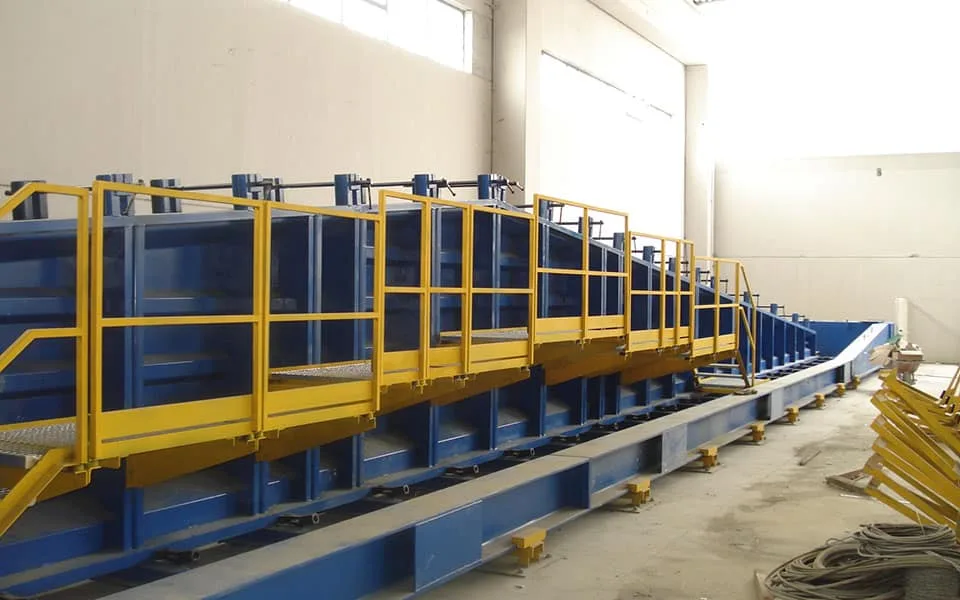

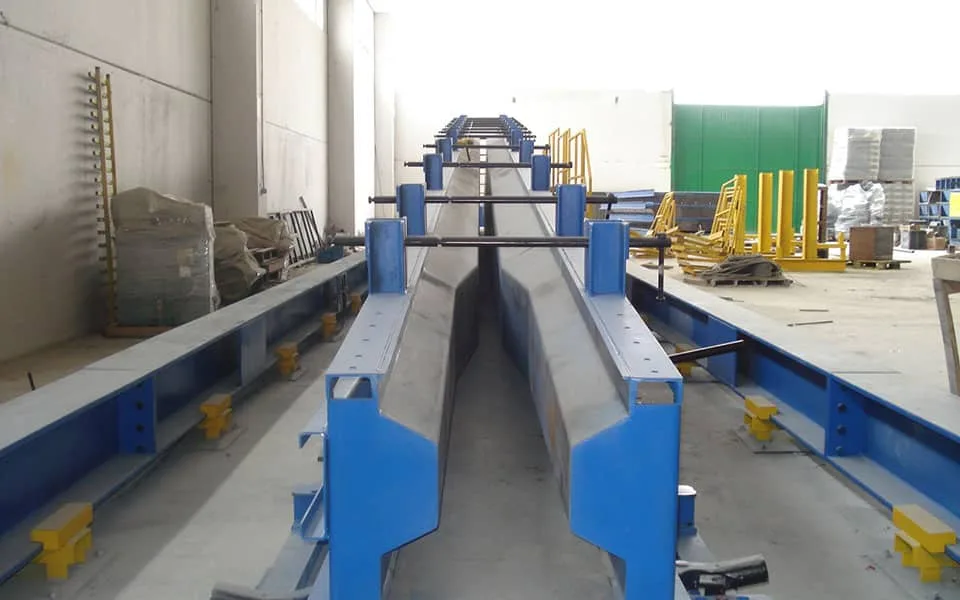

The mold sides for delta girder are casting elements designed to produce this kind of girder on a casting bed, in such a way that their shape defines the section of the casted girder.

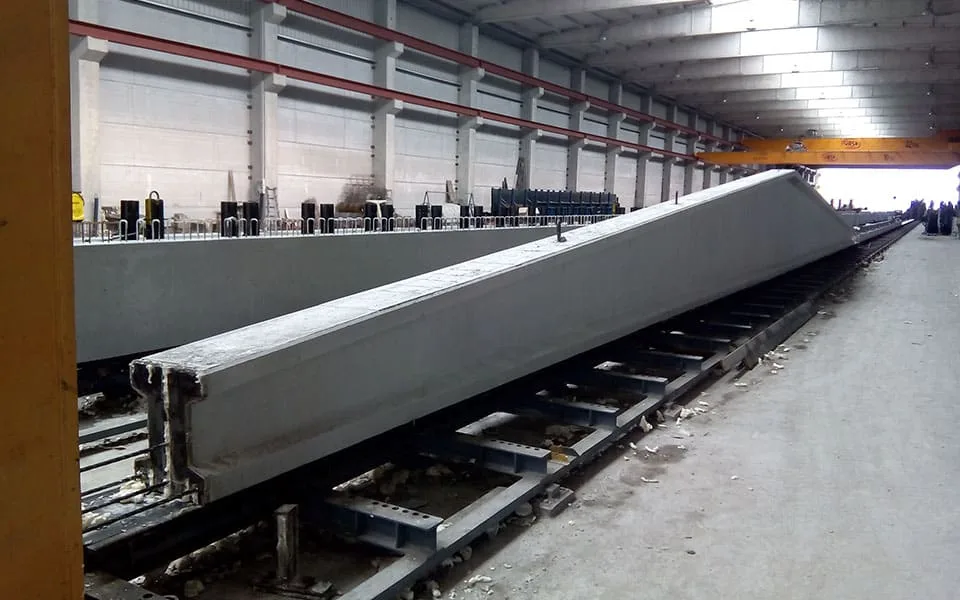

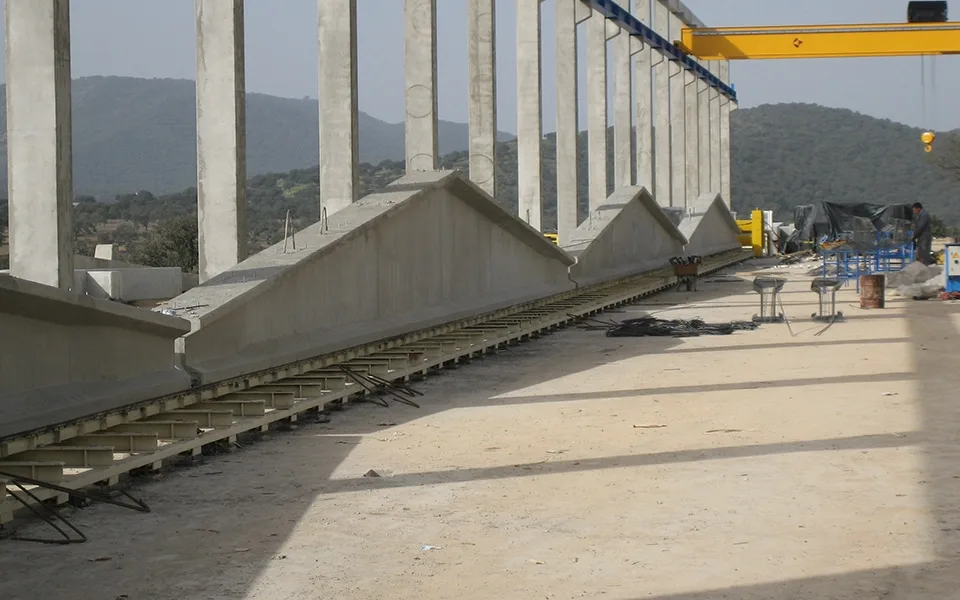

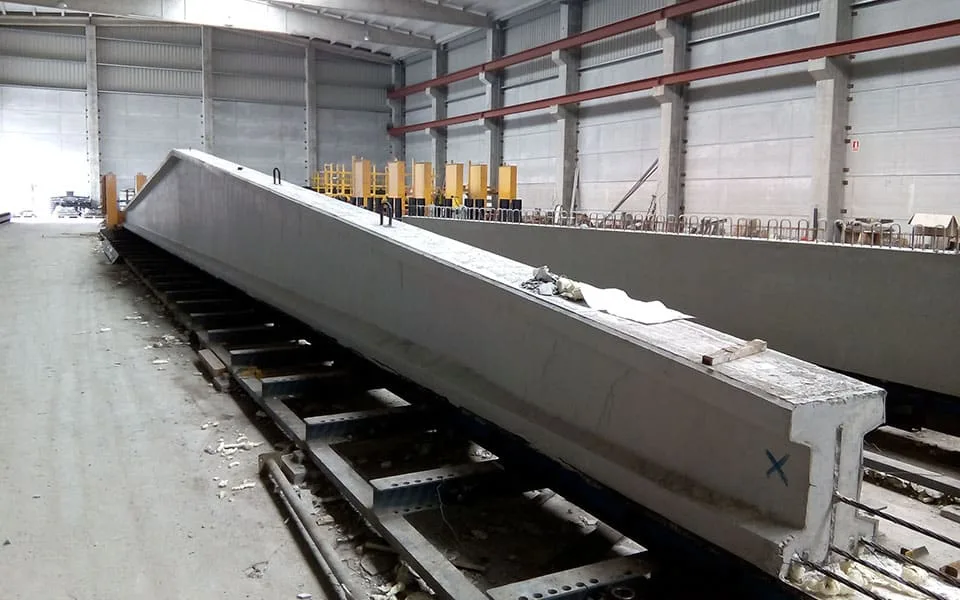

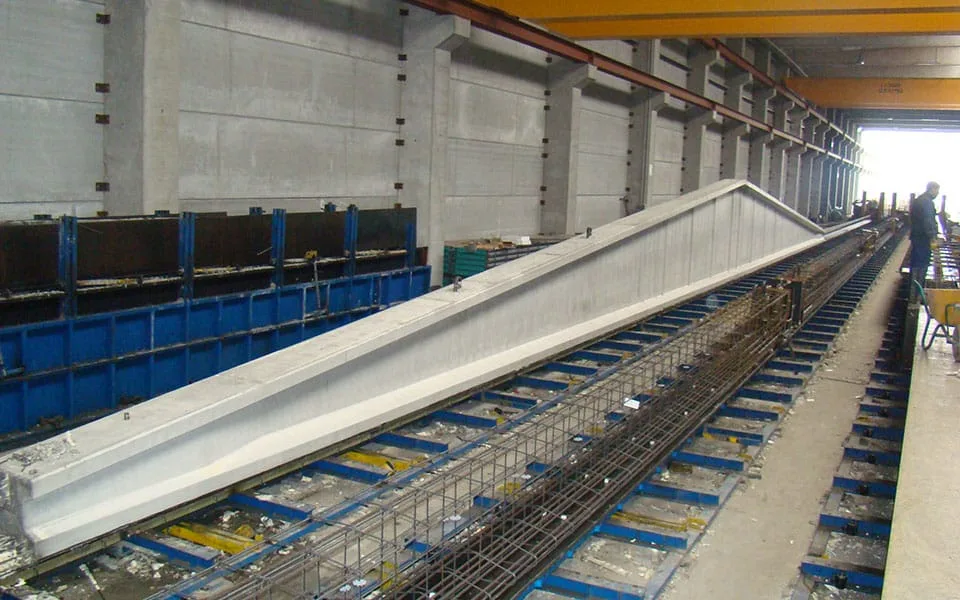

The delta girder is used in the construction of industrial buildings, warehouses or agricultural and livestock buildings, among other edifications.
The delta girders can be manufactured in several lengths and heights. These variations in height and length can be obtained with the same pair of mold sides whenever all the girders have the same slope on the upper flange.
For that purpose, the mold sides for delta girders are modulated in length, in such a way that central modules are removed or added between both ends. Such modules are assembled by screw-nut unions and are constructed to ensure the best continuity and sealing of the mold, which minimizes markings in the delta girder.
Recommended Products
Mould for U girders
Used mainly in industrial buildings.

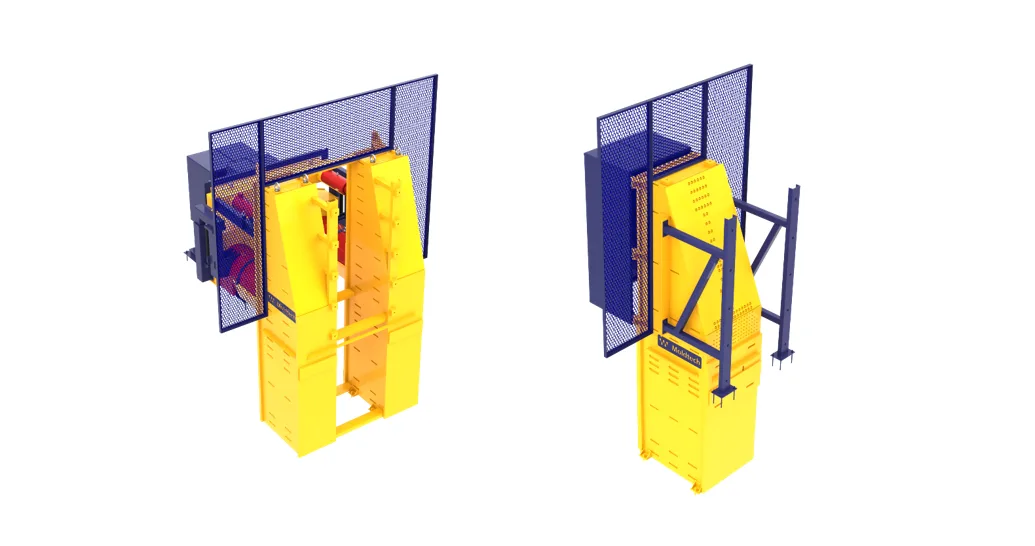

Pit foundations prestressing systems
