Why Tilt Up Panel Construction Is Gaining Ground
Tilt-up panel construction has become a breakthrough in commercial and industrial construction techniques. By forming concrete panels on-site and then “tilting” them vertically, contractors can dramatically shorten timelines, reduce labor costs, and maintain high quality. In fact, when we first implemented this method on a project in Mexico, we found the speed and accuracy it offers to be hard to beat. In this guide, we share insights, lessons learned, and real-life examples of how tilt-and-turn construction can boost efficiency on your next project.
Understanding Tilt Up Panel Construction

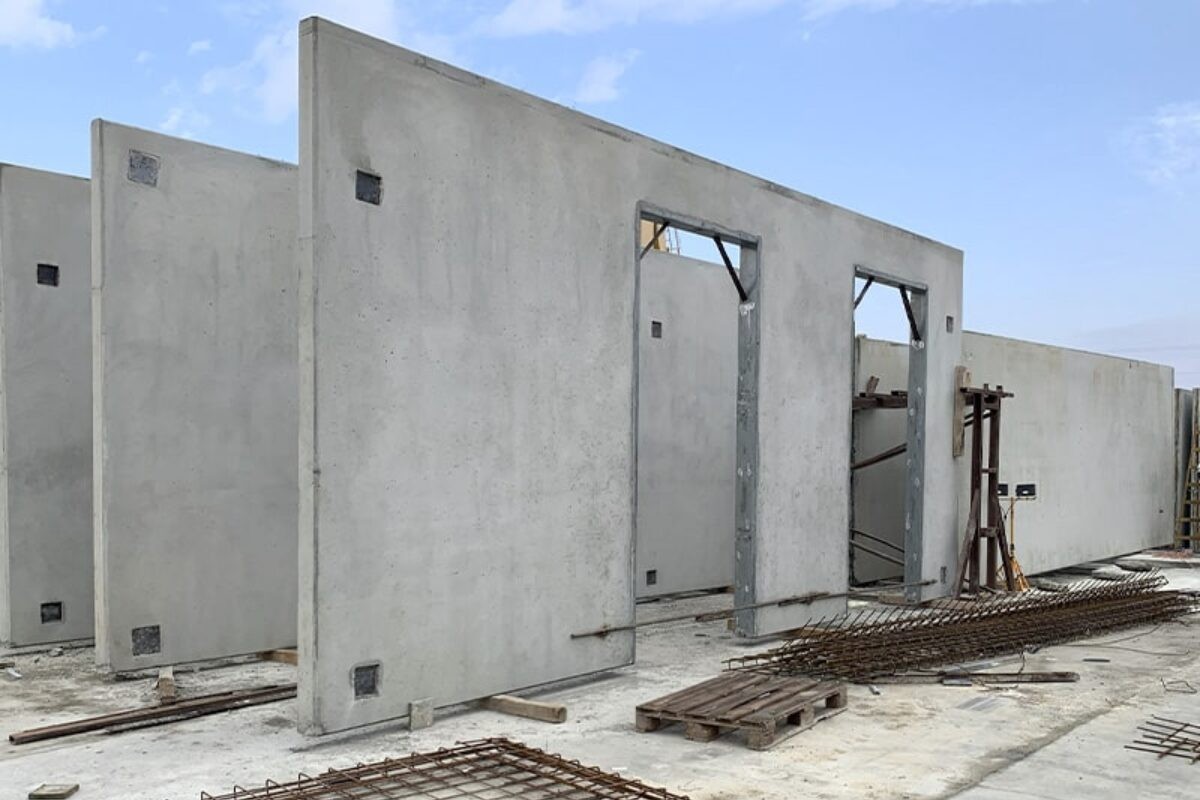

At its core, tilt up panel construction involves horizontally pouring wall panels onto a flat surface, curing them, and then hoisting them up using cranes. This method uses standard concrete mixes, reinforcing steel, and sometimes integrated insulation or architectural finishes. In our experience, the key lies in precise formwork and reliable handling systems.
The Process Illustrated
- Casting and Curing: We place the formwork on a tilting table or concrete bench, such as our Tilting Table 35 × 4.4 m – Mexico, to ensure a perfect “mirror” finish.
- Panel Preparation: After initial curing, the panel is reinforced with lifting inserts and quality-checked for flatness and finish.
- Tilt and Set: Using a hydraulic system, panels gently rise to 90°, ready for crane placement. That moment when a 30 cm-thick panel pivots smoothly (instead of jerking) always feels like magic.
Benefits of Tilt Up Panel Construction
Time savings and cost-effectiveness are the key highlights. By eliminating off-site shipments and reducing on-site formwork, contractors can shorten project timelines by 20 to 30%. Additionally, tilt tables with tongue-and-groove joints ensure tight tolerances and minimize patching. From a sustainability perspective, molding exactly what’s needed on-site reduces waste and carbon emissions associated with transportation. We’ve also observed improved thermal performance when panels include integrated insulation.
Real-World Applications
In one of our landmark installations, the 60 x 4 m Tilt Table in Mexico, we supplied equipment for the production of tilt-up walls at a major industrial park. There, panels up to 8 m high were safely shaped and tilted, enabling the customer to meet their demanding delivery schedules. In Canada, our Panel Tilt Table demonstrated how hydraulic centralization can adapt to local temperature fluctuations without compromising cycle times. These cases demonstrate that tilt-up is not just a trend, but a reliable solution worldwide.
Learning from Experience: Challenges and Solutions
A common problem we’ve encountered is underestimating the flatness of the ground. Even a few millimeters of unevenness can cause alignment issues. On a warehouse project in Mexico, we had to recalibrate the tilt table anchors mid-project. Lesson learned: always check the base tolerances before pouring. Another issue is the buildup of reinforcement near lifting points; over the years, we’ve refined our insert placement guidelines to prevent cracking when the panels tilt.
Tips for Successful Implementation
- Accessibility plan: Make sure cranes have clear lifting paths.
- Invest in operator training: Our team’s on-site coaching keeps safety incidents near zero.
- Collaborate early with structural engineers: They’ll help optimize panel thickness and reinforcement layout.
The Future of Tilt Up Panel Construction
Looking ahead, we’re seeing increasing use of robotic finishers, integrated precast window frames, and even sensor panels for real-time structural health monitoring. At Moldtech, we’re already developing prototype formwork compatible with modular MEP systems, so stay tuned.
Join the Tilt Up Revolution with Moldtech
If you’re ready to transform your next project with tilt up panel construction, let’s collaborate. From custom tilting tables to turnkey plant installations, we bring global experience to every job. Discover how we can streamline your process and deliver exceptional quality.
If you’re considering tilt up panel construction for your project, let us help you find the best solution tailored to your needs.
